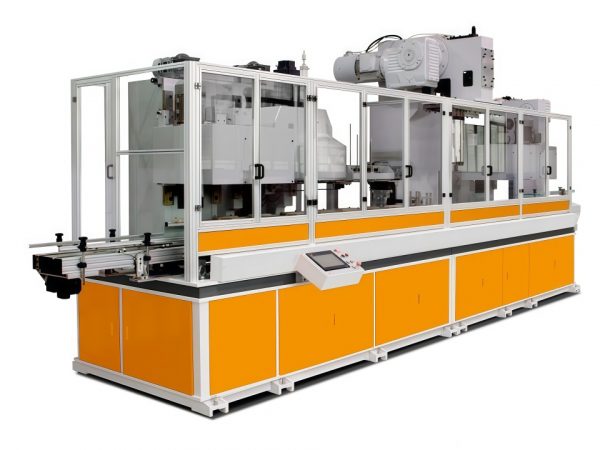

Automatic Conical Pail Combination Machine

Automatic conical pail combination production line can conduct production processes of conveying, flanging, bottom seaming, turnover, expanding, pre-curling, curling and beading.

Product Detail

Features

Flanging is accomplished by using rollers, suitable for either 5-layer or 7-layer seaming, well suited for tinplate material.
The machine adopts rollers for pre-curling and curling, can help reduce the defective percentage.

Parameters

Output	35CPM
Pail size	10L-25L 桶
Total power	APP.58KW
Pail diameter	260-300mm
Voltage (need to change molds)	Three-phase four-wire 380V
Pail height	250-480mm
Air pressure	Up to 0.6Mpa
Tinplate Temper / Thickness	T2.5-T3 / 0.28-0.48mm
Weight	APP.14.5T
Dimensions (L×W×H)	6050mmx1950mmx3100mm
