Automatic Duplex Slitter

Automatic Duplex Slitter

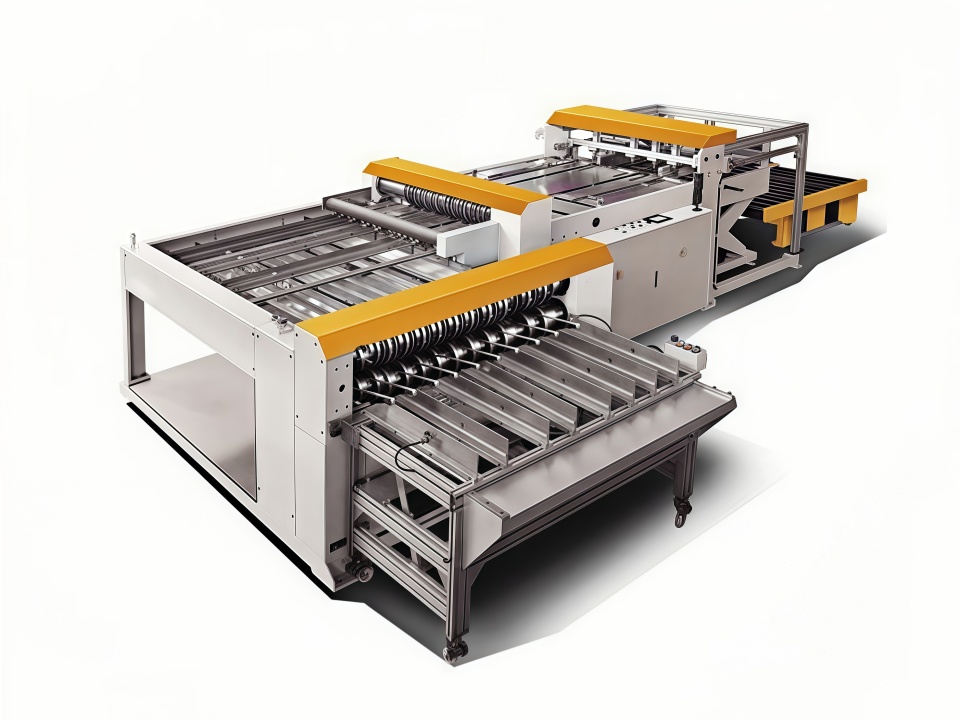

Automatic duplex slitter is composed of feeding machine, high precision slitter, and automatic collecting system.

Product Detail

Features

Automatic duplex slitter is equipped with servo motor controlling system, touchscreen panel for automatic dimension adjustment, and encoder controlled time synchronization system, thus to ensure a high production efficiency.

Equipped with double sheet testing unit, able to test the overlapping of two tinplates, thus to ensure the stable running of our machines.

High quality electrical system and control system, stable controlling precision and high efficiency of dimension adjustment.

Capacity	33sheets/min
Dimension Tolerance	±0.02mm
Diagonal Tolerance	±0.05/100mm
Tinplate Size	600-1200mm
Tinplate Thickness	0.12-0.4mm
