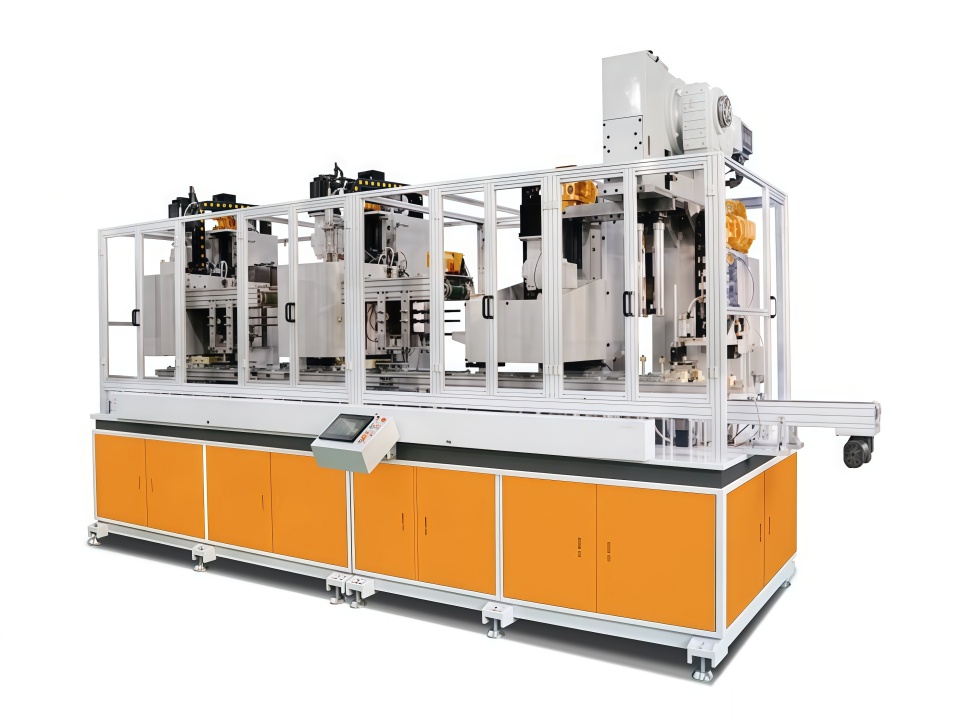

Automatic Small Rectangular Can Combination Machine

This combination machine is a fully automatic production line used for manufacturing small rectangular cans. It adopts cam mechanism to conduct transmission, can conveying and can holding.

Product Detail

Features

  1. Smooth and safe operation is guaranteed thanks to continuously adjustable speed and protection device against can jam.
  2. The internal and external grooved pulley makes sure the flanging is uniform and fast, thereby ensuring good seaming quality.

Parameters

Can size1L-5L
Output40CPM
Air pressureup to 0.6MPA
Height of connect1000mm
VoltageThree-phase four-wire 380V
Dimensions (L×W×H)3100X1900X2400
Weight10t
Power25kw
