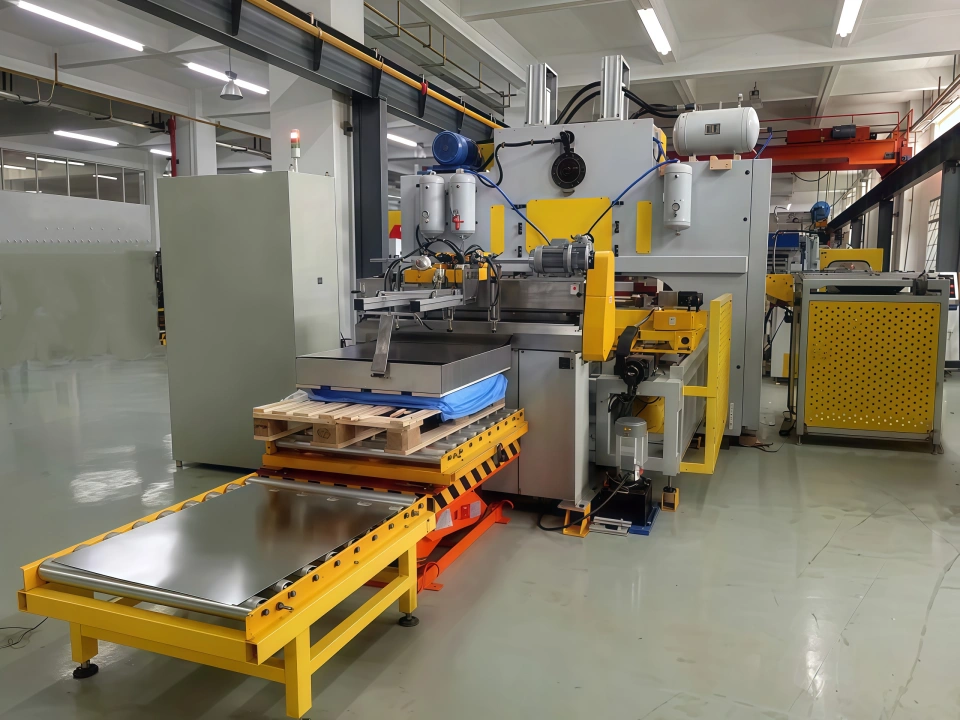

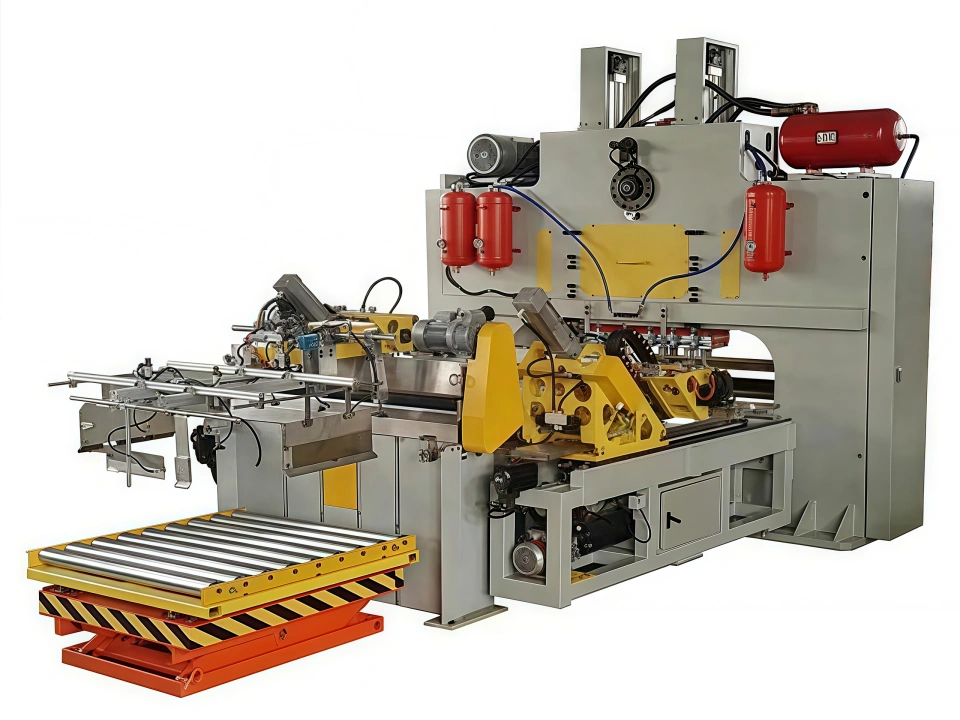

High Speed Punch Machine

High quality die steel and multi station design,according to customer needs to develop and implement a variety of design schemes.

Product Detail

Features

Specially customized multi-station mold protection, reliable protection of the mold itself

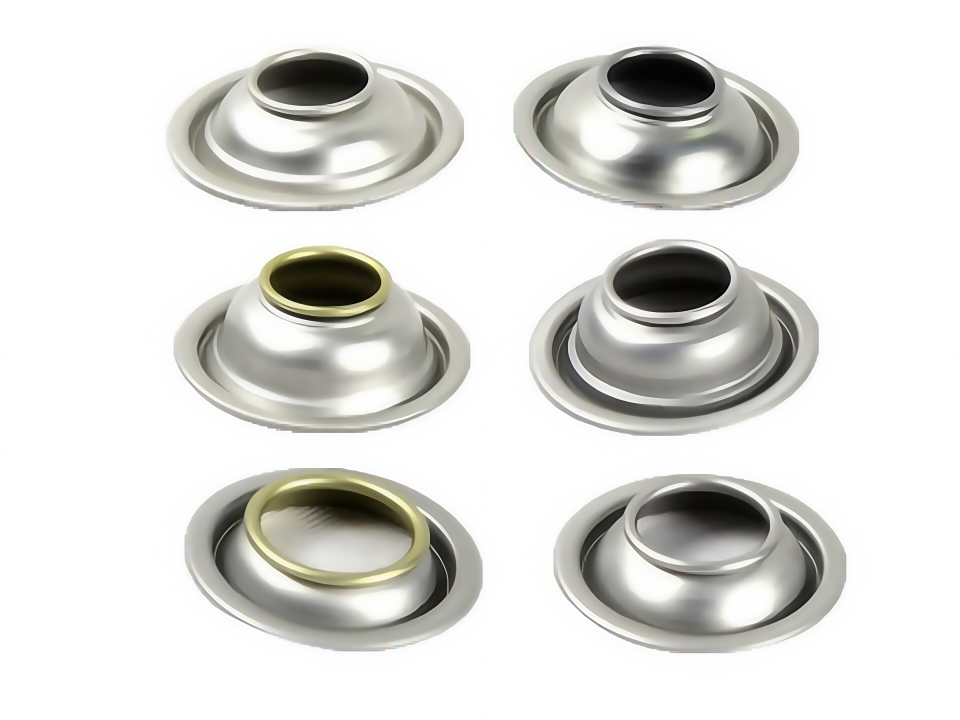

The cam-type feeding mechanism accurately sends the foundation cover into the multi-station mold
Unique patented base cover system, multi-channel automatic conversion into dual channels;
According to the cover stock of the base cover conveying line, the stamping speed of the multi-station press is automatically adjusted to make the whole production line run coherently, smoothly, stably and reliably.
The glue filling machine with independent intellectual property rights, the glue filling time is electronically adjustable, the glue filling amount is continuously adjustable, and the glue filling speed can be automatically adjusted according to the number of the glue filling cover.
The independent intellectual property rights of the cover defect visual detection system, accurately eliminate unqualified covers, eliminate unqualified products into the canning process, improve the detection efficiency, improve product quality, improve the yield, reduce waste. Reserve data upload enterprise production management system interface, make production statistics easier, reduce labor intensity and error.
With independent intellectual property rights counting into the bag packaging system, automatic counting, automatic into the bag, reduce the labor intensity of workers.

Parameters

Stamping speed	300pcs/min.
Applied voltage / power	AC380±10%、T-C-S Power supply 27KW
Working system	24-hour working system
Gas supply pressure	5- 8kg/cm²
Operation mode	Full automatic /Chinese and English display / touch panel
Control method	PLC, frequency converter, touch screen operation, automatic operation, automatic reset.
Packing count accuracy	±1 pcs
Equipment safety protection	Operation fault protection, safety optical grating protection and equipment operation safety protection.
