Features

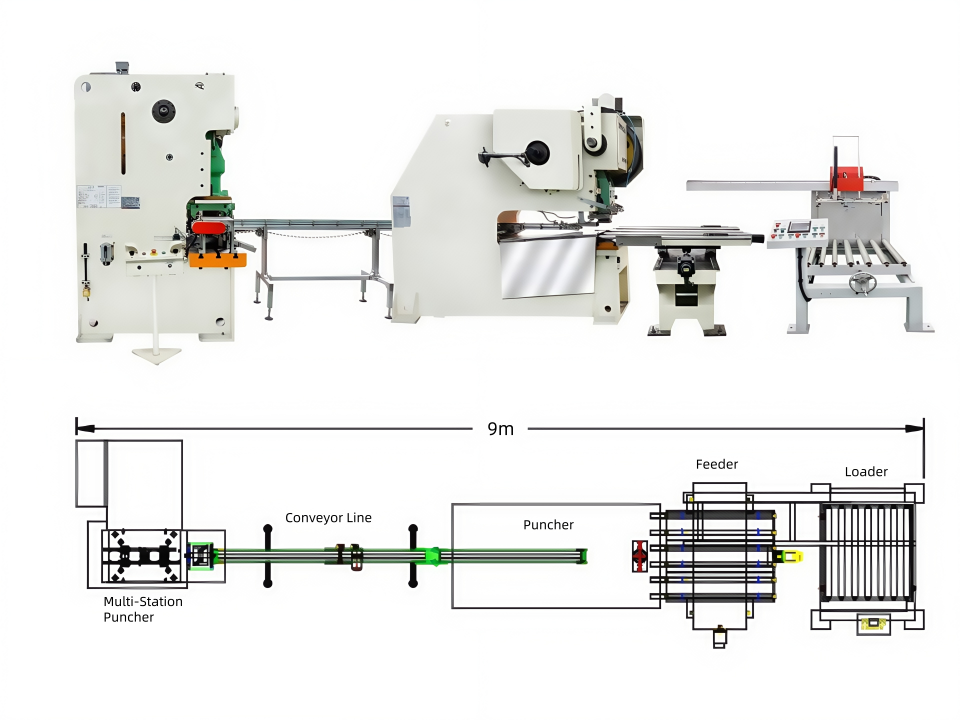

1.Mold material selection of high-quality die steel, multi-station design; According to the product process such as drawing, forming, cutting, rolling and other multi-process, design the corresponding multi-station mold;
2.Automatic feeding, reduce labor costs;
3.Automatic correction of iron cutting and printing errors;
4.According to customer needs to develop, design mold, implement various programs;
5.Automatically adjust the speed of the multi-station press according to the number of covers transported, so that the whole production line can meet the continuous operation conditions;
6.Patented CAM/servo multi-station transmission mechanism, accurate feeding, making the production process more stable;

Parameters

Model	JFGL-120
Production speed	60~ 120pcs per min
Applied voltage / power	AC380V ±10% T-C-S Power Supply
Working system	24-hour continuous working system
Gas supply pressure	0 .5-0 .8MPa
Operation mode	Full automatic / Chinese and English display / touch panel
Control method	PLC, frequency converter, touch screen control,automatic operation, automatic reset
Equipment safety protection	Safety grating protection, equipment operation fault protection, all electrical protection
