Features

1.A variety of configurations to achieve high speed and high efficiency;

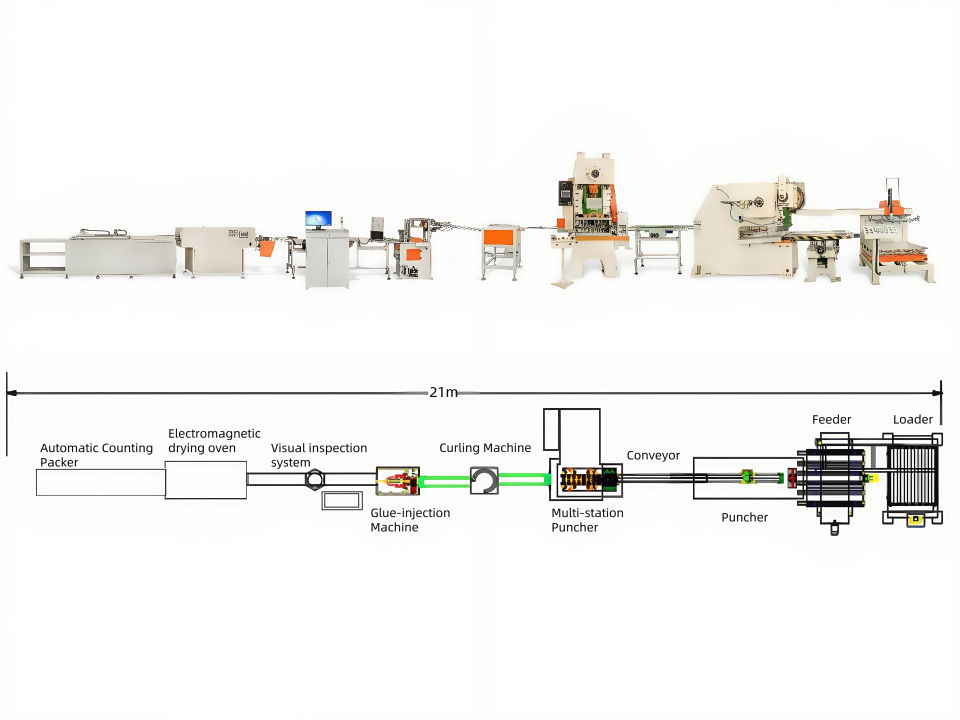

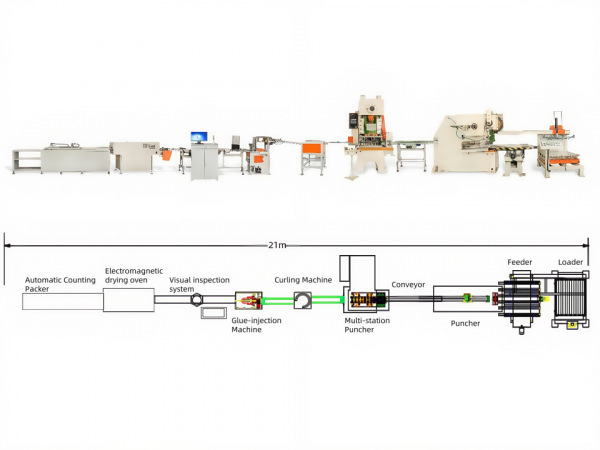

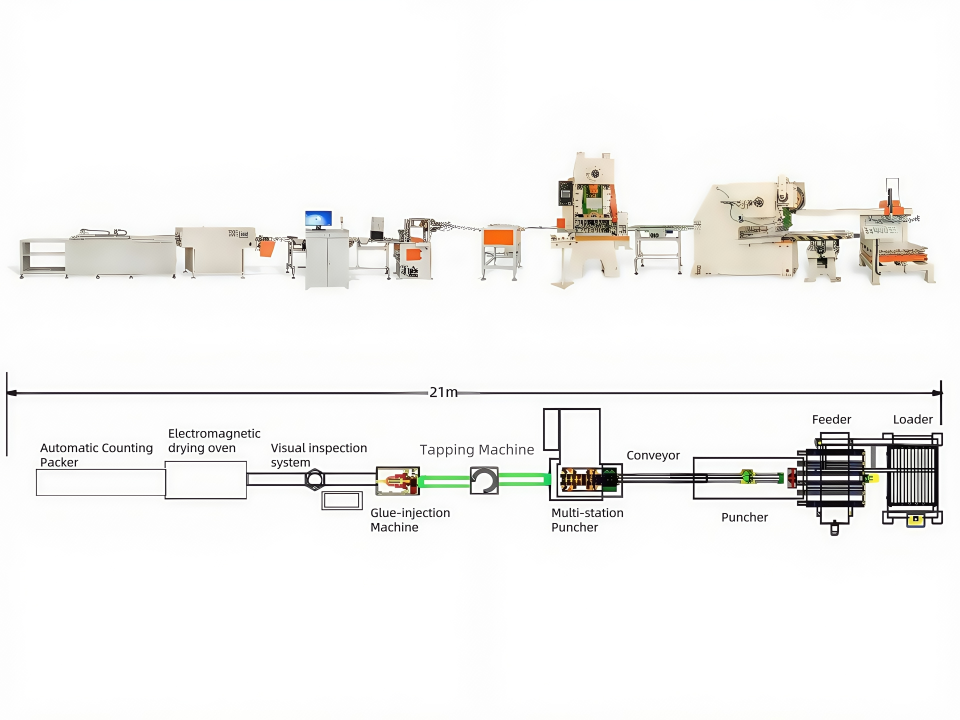

2.Production line: base cover punching machine, multi-station stamping, tapping,gluing, induction oven drying, etc;
3.According to the needs of customers to develop, design mold, implement a variety of programs;
4.Automatically adjust the speed of the multi-station press according to the number of conveyor covers, so that the whole production line can run continuously and stably;
5.Mold material selection of high-quality die steel, multi-station design;
6.The patent of CAM/servo multi-station feeding mechanism makes the production process more stable and smooth;

Parameters

Model	JFSL-120
Production speed	60~ 120pcs
Applied voltage / power	AC360~400V , Three phase five wire system , 18KW
Size(L×W×H)	21000*3650*2250 mm
Working system	24-hour continuous working system
Gas supply pressure	0 .5-0 .8MPa
Operation mode	Full automatic / Chinese and English display / touch panel
Control method	PLC, Frequency converter, touch screen control,automatic operation, automatic reset
Equipment safety protection	Safety grating protection, equipment operation fault protection, all electrical protection
