Features

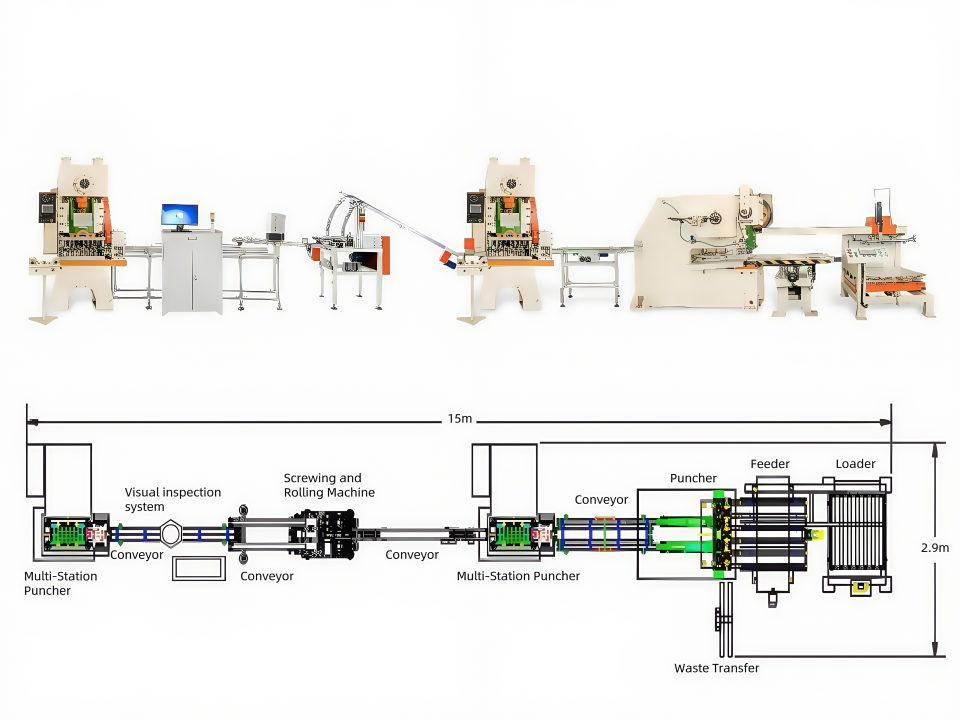

1.The multi-station press adopts high-precision and high-stroke press, pneumatic friction clutch, rectangular six-sided lengthened guide rail, lifting balance cylinder device, Siemens main motor, imported PLC program control, imported double solenoid valve, travel times 120-180 times/minute;
2.Mold material selection of high-quality die steel, multi-station design;
3.The cam-type feeding mechanism accurately feeds each base cover into the multi-station mold.

Parameters

Model	JFU-150/JFU-330
Production speed	Single channel: 120-150 / minDual channel: 300-330 / min
Applied voltage / power	AC380V/5 .5KW

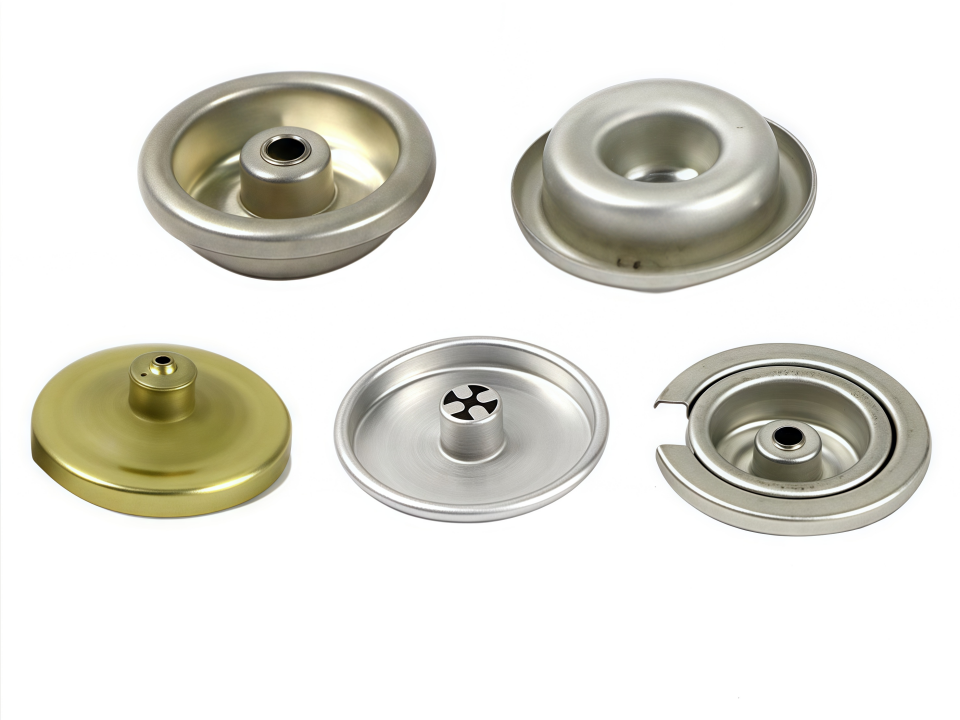

Scope of application	Gas valve seal cup, snow can valve seal cup, foam valve seal cup, conventional aerosol can valve seal cup
Working system	24-hour continuous working system
Gas supply pressure	0 .5-0 .8MPa
Operation mode	Full automatic / Chinese and English display / touch panel
Control method	PLC, frequency converter, touch screen control,automatic operation, automatic reset
